Autonomous Waypoint Navigator

Overview

View the Git repository.

---

---

About

• This software program enables autonomous waypoint navigation for a mobile platform using a Raspberry Pi 5.

• The system will use GPS data to guide the platform from one location to another along a predefined series of static waypoints.

Hardware Requirements

• Raspberry Pi 5 (16GB)

• Raspberry Pi 5 charger (CanaKit 45W USB-C Power Supply with PD for Raspberry Pi 5 (27W @ 5A))

• GPS Dongle (VK-162 G-Mouse USB GPS Dongle Navigation Module External GPS Antenna Remote Mount USB GPS Receiver for Raspberry Pi Support Google Earth Window Linux Geekstory)

• A flash drive (8GB+)

Installation

1. Plug charger and GPS dongle into your Raspberry Pi.

2. Flash Raspberry Pi OS Lite (64-bit) onto your Raspberry Pi 5 (https://www.raspberrypi.com/software/). Make sure to enable ssh and wifi in the Raspberry Pi Imager.

3. Ssh into your Raspberry Pi and update the OS using sudo apt update && sudo apt upgrade -y.

4. Install git using sudo apt install git -y so that we can clone this software project through git.

5. Clone this project using git clone https://github.com/kimsh02/awns-rpi5.git.

6. Go into the project directory with cd awns-rpi5.

7. Run sudo ./scripts/install.sh. This will install, build, and set up the necessary tools, and then build and install the executable system-wide.

8. Copy paste this one-liner if you want to run the shell commands above in one go:

   sudo apt update && sudo apt upgrade -y && sudo apt install git -y &&
   git clone https://github.com/kimsh02/awns-rpi5.git && cd awns-rpi5 && sudo
   ./scripts/install.sh


Usage

• You should now be able to invoke the program with the command awns-rpi5 COMMAND.

• Help message print:

Usage: awns-rpi5 COMMAND

Autonomous waypoint navigation system for a mobile platform using Raspberry Pi 5

Commands:
  gpspoll        Poll GPS to get a reading
  run            Use GPS data to guide platform along a predefined series of static waypoints and output logs
  solve          Use Concorde TSP to solve directory of CSV waypoint files and output solutions as plotted graphs
  help           Show this help message and exit

Examples:

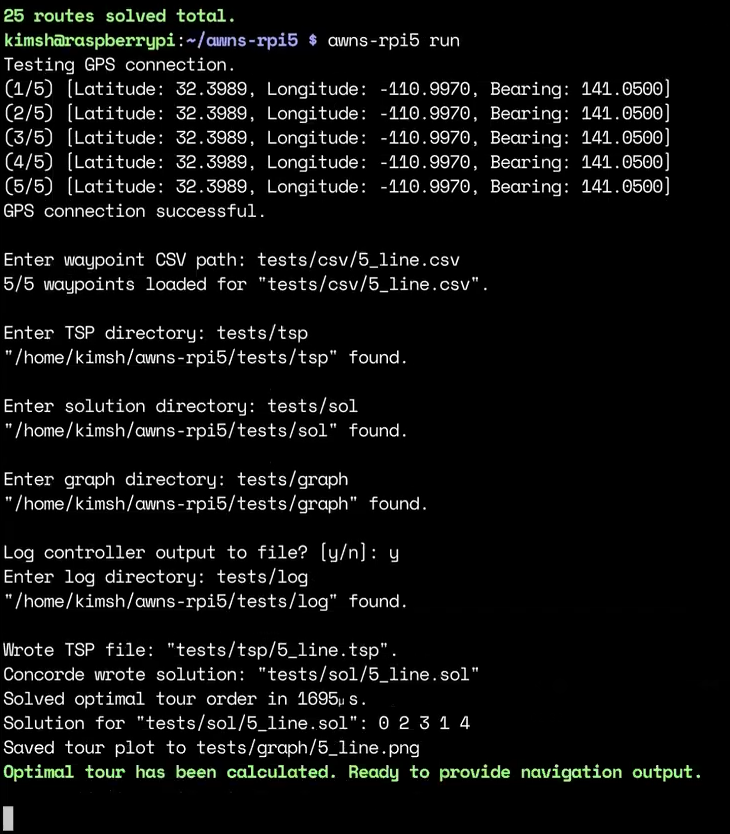

  awns-rpi5 run
  awns-rpi5 solve

Concorde TSP Solver

• Concorde is a standalone executable written in C and is considered to be the world’s fastest traveling salesman problem (TSP) solver to date.

• The install.sh builds and installs Concorde to the system, and the program relies on invoking concorde to generate the optimal visiting order of waypoints.

• As a sidenote, technically, the system invokes an alternate build of Concorde called linkern which uses the Lin-Kernighan heuristic in place of the custom heuristic used by the full concorde binary. The Lin-Kernighan heuristic provides near-optimal solutions to TSP but does not offer provably optimal solutions which are guaranteed only by the concorde executable. The full build of concorde was not achievable for this project as a specific required library qsopt was determined to be too out-of-date to be refactored in a reasonable amount of time to be in compliance with the C++23 standard (which is a build requirement for this project).

File Input/Output

• The awns-rpi5 program invoked with run or solve will expect the user to provide certain files and/or directories and is explained below.

CSV Input

• The program will read in a series of static waypoints via a .csv file.

• Must have two columns with headers specifying latitude and longitude and in that order.

• A tests/csv directory is included in this repo providing test CSV files.

TSP Output

• The program will generate a .tsp file for each .csv file and requires a directory to output these files.

• The .tsp file contains specially converted GPS coordinates and specifies the traveling salesman problem in a format that Concorde understands.

• The .tsp file is used to communicate to the Concorde TSP solver which reads in the .tsp file to solve the optimal/near-optimal tour order of waypoints.

• A tests/tsp directory is included in this repo for convenient use.

SOL Output

• The Concorde TSP solver generates a .sol file that specifies the solved tour order of waypoints and requires a directory to output these files.

• The program will read in the .sol file to get the solved tour order.

• A tests/sol directory is included in this repo for convenient use.

Graph Output

• The program invokes a Python script (installed through install.sh) to generate a .png plot visualization of the tour order solved by Concorde and requires a directory to output these files.

• A tests/graph directory is included in this repo for convenient use.

LOG Output

• The program in run mode optionally provides writing navigation output to a .log file and requires a directory to output these files.

• A tests/log directory is included in this repo for convenient use.

API

• Simple API that can be integrated with development of a downstream motor controller.

Headers

• #include "navigator.hpp"

Documentation

• Navigator(int argc, const char **argv) noexcept
  • @brief Constructor for ‘Navigator` object.
  • @param argc The argc from int main(int argc, const char **argv).
  • @param argv The argv from int main(int argc, const char **argv).
  • @return Navigator object.
• void start(void)
  • @brief Invoke CLI to setup Navigator object. Must be called after object initialization.
• void setProximityRadius(double r) noexcept
  • @brief Setter for proximity radius for determining arrival at each waypoint.
  • @param r Proximity radius in meters. Cannot be set to less than 1.0 meters (will result in default of 1.0).
• void setSimulationVelocity(double v) noexcept
  • @brief Optional setter for simulated downstream motor controller speed. If set, navigation output is generated based on simulated speed, else navigation output is generated based on GPS position.
  • @param v Simulated velocity in meters per second.
• std::optional<json> getOutput(void)

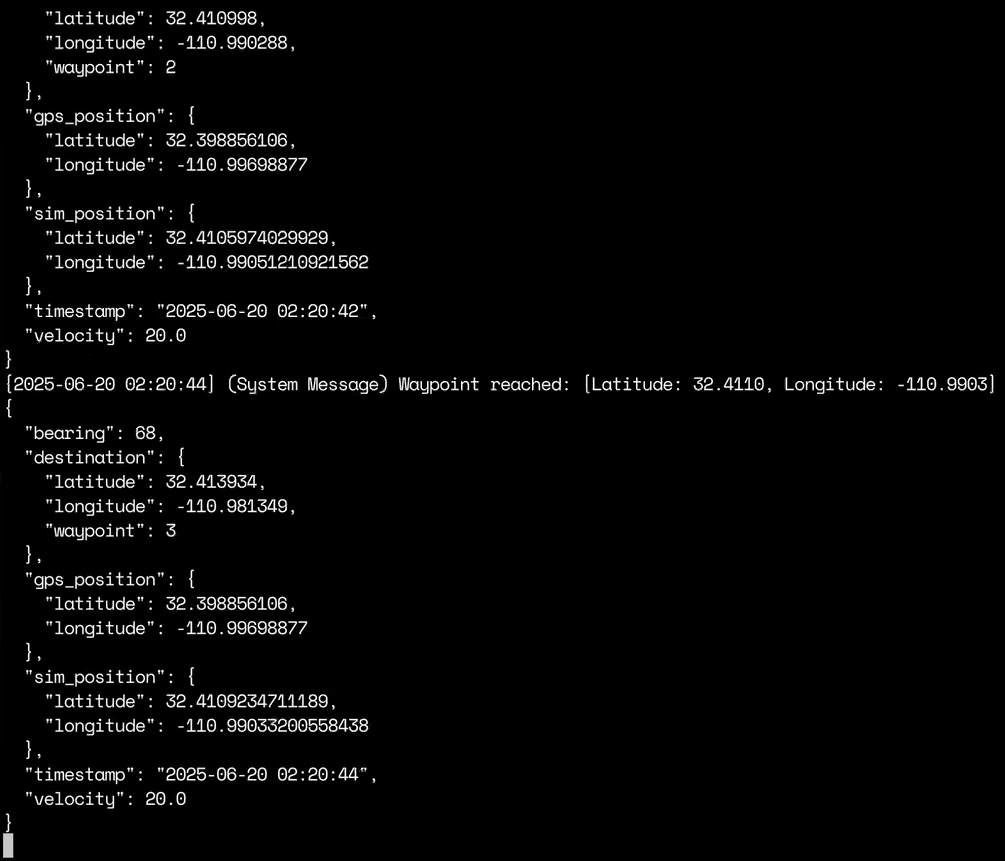

  • @brief Spits out navigation output in JSON format and prints output to stdout and optionally to a .log file. Must invoke start(void) and setProximityRadius(double r) beforehand.
  • @return nlohmann::json object. JSON key-value of interest for downstream controller is ‘bearing’ whose value is reported as degrees from true North.
• Please see main.cpp for example usage of the API.

Development Notes

• This project is compiled using CMake and its build configuration should be managed through CMakeLists.txt.

  • There is a memory, thread, and release version of the build and should be specified through CMake. While thread should not be of interest as this program is single-threaded, memory offers compilation with a memory/address sanitizer (through Clang) for debugging, and release offers a compilation of the software with O3 optimization enabled and all other debugging flags disabled.

• Script concorde-macos-arm.sh installs Concorde/Linkern binary on an ARM-based MacOS machine for local development if you have a Mac.

• Script dev.sh is a convenience script that re-pulls from Git and re-installs executable on Raspberry Pi 5.

• .gitlab-ci.yml configures a CI/CD pipeline on GitLab that replicates the exact build of awns-rpi5 on a Raspberry PI 5 OS to ensure that the project is building and running properly without manually having to rebuild on the Raspberry Pi 5 every time (which is time consuming).
